Step and Repeat Interface

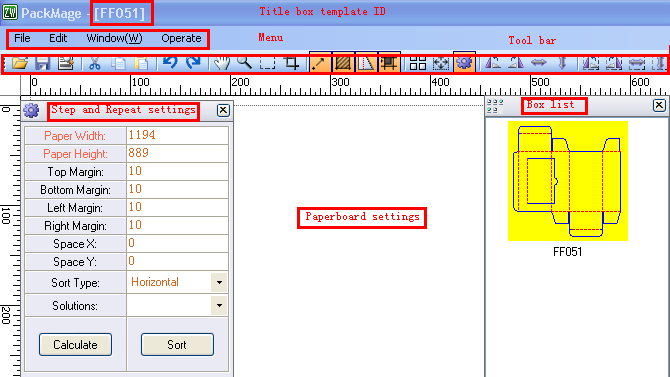

The Title bar in the top of the interface show the box template ID being editted currently, next is menu and tool bar, user can click the menu to check the drop-down options, the 2 default windows in the interface is step and repeat calculate window and box template list window, user can click the related buttons to hide and display them.
